Hi everybody,

My 2X4 HD 4 outputs are all out of service since the morning.
No sound from my speakers, so I tested with REW generator and a digital multimeter.

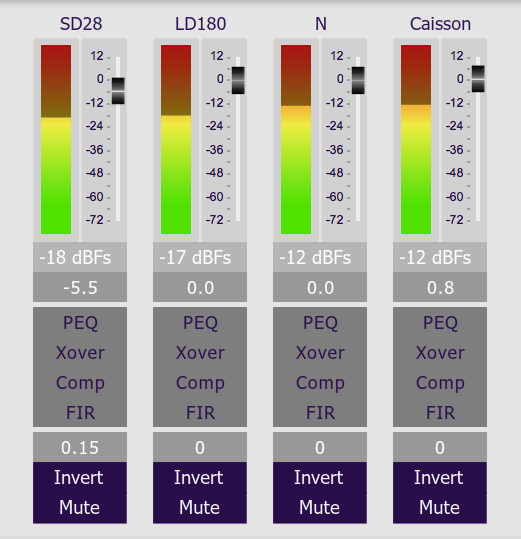

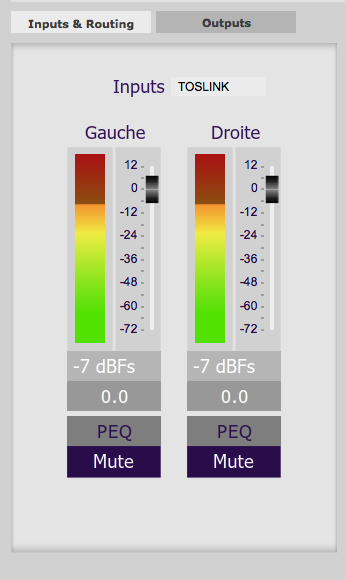

1KHz from REW generator, no Xover, outputs are about -12dB, some differences between the channels due to not flattened EQ.
Digital multimeter indicates 0,003V for all the 4 outputs.

I expect a big trouble, something I can't repair, but maybe it wasn't so big and repairable ...
What do you think about it ?

Alain





In fact Analog INPUTS and OUTPUTS are down (
It seems something like an analog power circuit failure.

Any clue ?

Did you try another power supply?

Careful. Use one with same specs!

Yes, I used another one and same thing.
The main I use is a Meanwell 12V 5A, I tried with the power supply delivered with the DSP.

It worked well for 8 months ...





In summary, DSP works well, analog doesn't work.
On the analog side, on the board, the power supply parts can be damaged, the ADC and DAC can be damaged.
How can I try to find out where is the trouble ? ( With a digital multimeter ... )

I think it's more for the devteam,

Alain wrote:

I think it's more for the devteam,

I think you probably realise but in case not you should contact miniDSP support via the link at the top of the page.

Hi Ultrasonic,

Good idea, thanks !
I thought the devteam was monitoring this forum more often

Alain

Alain wrote:

Hi Ultrasonic,

Good idea, thanks !

I thought the devteam was monitoring this forum more often

Alain

As per the text in bold at the top of every forum page, the support link is the intended route for official support. I'm sure most of what is posted on the forum is read read but a browse will show you that you certainly can't expect a fast official response to all questions (reasonably as this is not the intended purpose of the forum).

Yes, I finally read it and get a ticket from the support team
Thanks a lot !
Alain
